AMSOIL Arena, the largest stage in Duluth

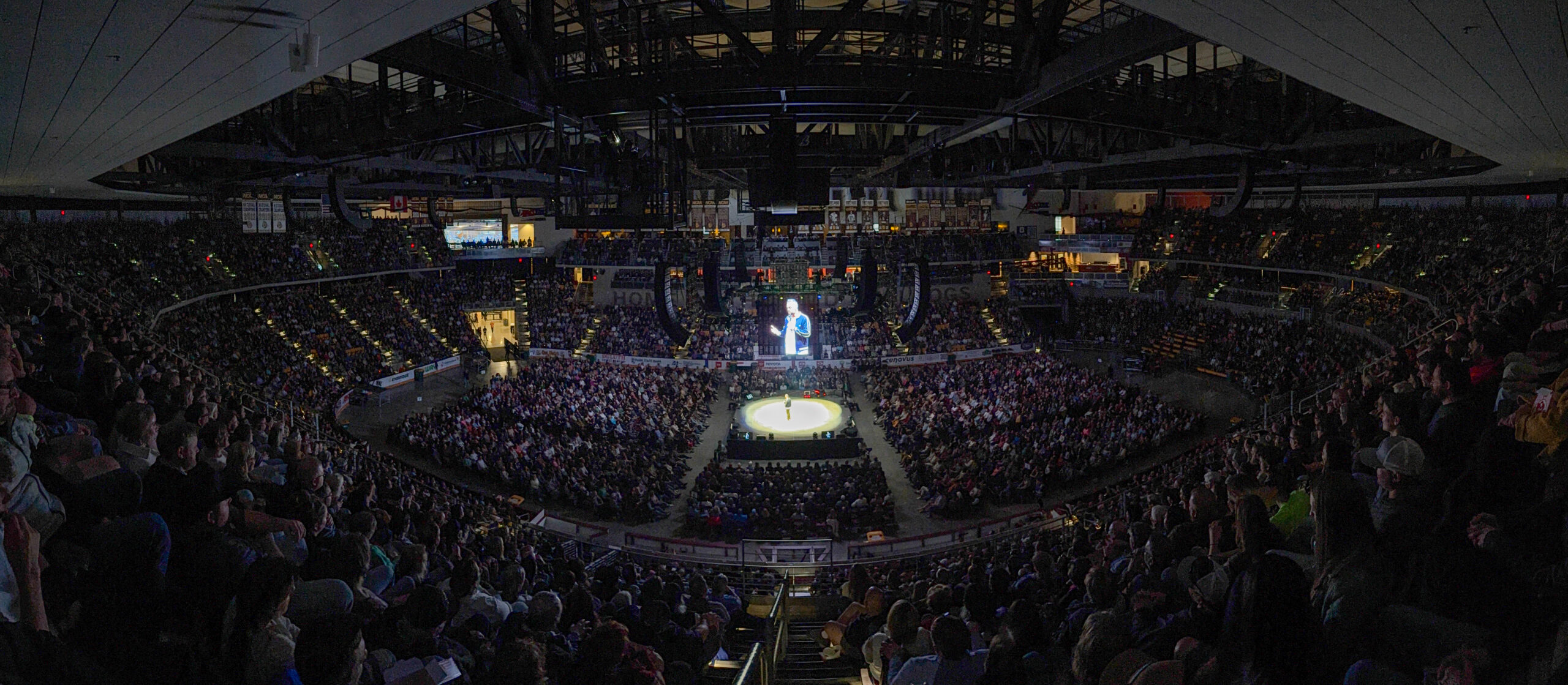

As the crowds grew at concerts and UMD hockey games, the city needed an arena worthy and able to fit its audiences. The DECC answered with the beautiful AMSOIL Arena. Since the doors opened in 2010, thousands have roared for the Bulldogs, been stirred by artistic performances or sung at the top of their lungs as their favorite musician took the stage.

We built this stadium to evoke excitement and have everyone feel a part of the action. The design allows for even those in concessions to keep up with the game, and the seating was planned for comfort with plenty of legroom. The arena is surrounded by 15 luxurious suites and one large party suite. Recently named the best college hockey arena in the country by Stadium Journey, AMSOIL Arena lives up to fans’ expectations.


  • Floor Plans & Capacity Guide
  • Technical Specs

    Arena Floor

    Dimension: 85’ x 200’
    Floor/Circus Anchors: Yes, not all exposed, map available


    Bays: 3 available off 5th Avenue West Bay Size: Width: 14’ and 32’. Height 16’ Push to Arena Floor: 75’
    Truck Parking: 6 spaces available on site
    Loading Dock: None, flat drive in


    Panels 1 thru 4: 3 phase 400 amp per leg fused circuit protection – Cam Lock or Lug Panels 5 thru 6: 3 phase 200 amp per leg fused circuit protection – Cam Lock or Lug Pin & Sleeve 1 thru 2: 100 amp 3 phase plug – circuit breaker protection
    NEMA 14-60 1 & 2: 60 amp single phase 208v circuit breaker protection
    Location: All power panels and plugs are located approximately 50’ upstage stage right


    • Low Steel 53’
    • High Steel isn’t available for hanging High Steel is accessible
    • Beam Spreads: 36’
    • Steel Runs stage left to stage right


    • Height: 46’ from floor to bottom of scoreboard in uppermost position
    • Location: Center Ice
    • Removable: No
    • Size: 15’ x 20’


    4 Strong Gladiator IV 40000W Xenon

    Circus Inserts


    AMSOIL Arena Rigging Grid

    AMSOIL Arena Rigging Grid – Stage End
